TSL-MP8 Drone Jammer
Parameterc
Shielding Range: Radius 200-500 meters(-75dBm,depending on the
distance of base station in an open filed)
Transmission Power: Customized
Jammed Signal Types: CDMA:2.4G,2.4G,5.8G,GPSL1,433, 915MHZ
Output Channel: 6 output channels
Features
*Ultra-wideband jamming coverage;
*Draw-bar box designed for portability and easy moving;
*Built-in rechargeable battery can be used for 90~120 minutes after
being fully charged;
*Manual switch and remote control;
*Each channel module can start or close individually;
*Efficient frequency division ensures the best interference effect
on signals of different frequencies;
*Efficient power distribution minimizes power loss and improves
efficiency; the power can be regulated as needed ( optional gear
regulation);
*Military standard casing, which is anti-throw, pressure-resistant
and durable;
*AC110-220V/Built-in battery supply (DC24V)/Vehicle power supply
(DC24V);
*Built-in efficient cooling fan and cooling fin ensures the product
work stably in a long service life

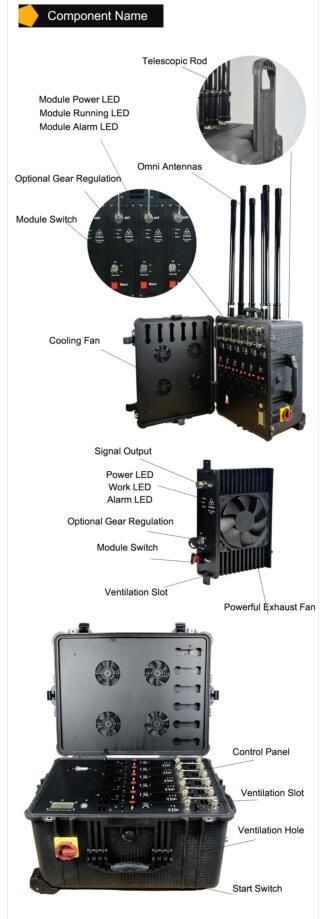

Component Dimensions
| Name | L | W | H | Remarks |
| Host | 650 | 509 | 357 | Protrusions excluded |
| Antenna | 760 Φ35 |
| Net Weight | 49kg |
| Total Weight | 85kg Aviation Case included |
| Ambient Temperature | -10℃~+50℃ |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,46AH,Built-in standby battery can used for 90~120 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
Technical Parameters
*Each draw-bar box can assemble five high-power modules, and each
module can be customized.
*Each module can be any combination according to frequency
requirements.

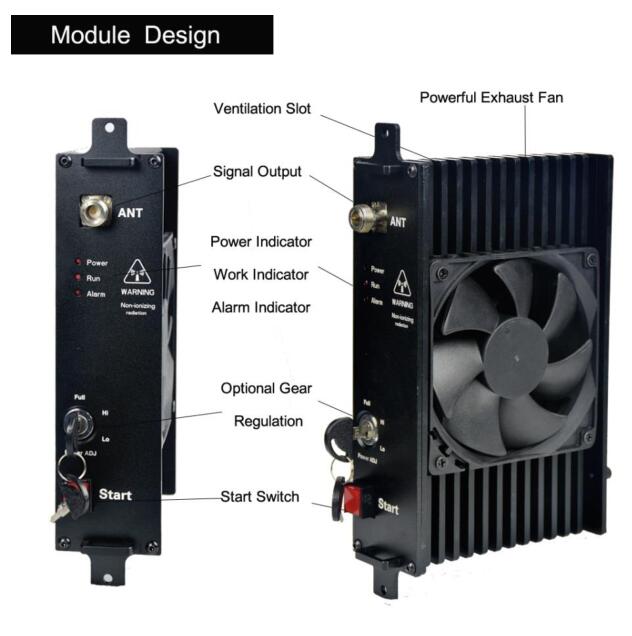

*Each module is designed with three indication lights, to show
Power, Run and Alarm (reflective self-excited fault alarm).
*Each module has its own module switch, switch on or switch off
optionally according to field application requirements.
*Each module is independent of each other, pluggable and replaced
directly, and it would not affect the normal working of other
modules.
Band Parameters
Frequency parameters can be customized. Typical frequencies are
shown below
| Channel | Frequency | RF Power |
| CH1 | 2.4G | 50W |
| CH2 | 2.4G | 50W |
| CH3 | 5.8G | 25W |
| CH4 | GPSL1 | 50W |
| CH5 | 433MHz | 50W |
| CH6 | 868-920MHz | 50W |
Cautions
A: Unpacking Inspection
1) Check main devices and components according Packing List. Please
contact the manufacture if any part missing.
2)Confirm the quantity and labels of antennas
B: Antenna Installation
1) Low Frequency antenna is long and is recommended to be installed
at the back of the vehicle.
2) High Frequency antenna is recommended to be installed on the
roof. An antenna mount with a turnover mechanism is optional, so
that the antenna can be folded and put on the roof when it is stand
by.
3) 4X4 ORV (Off-Road Vehicle) is recommended.
C: Vehicle Power Supply
1) Portable generator is necessary to provide high-power (AC).
2) Output of generator is not less than 3500KVA.
3) A BUFFALO Power Generator is recommended for low-noise,
small-size and high-power portable application.
D: Cooling & Ventilation
1) This product has an intelligent cooling and ventilation system,
and auxiliary cooling is unnecessary.
2) Air intake/exhaust is recommended to ensure air circulation in
vehicle
Product Applications
It is suitable to protect important leadership or VIP security,
individual combat, SWAT teams, EOD teams, anti-terrorist units,
anti-drug units, bomb squad, security checkpoints, administrative
law enforcement, hostage negotiations, border control and military
security forces and other application areas.
